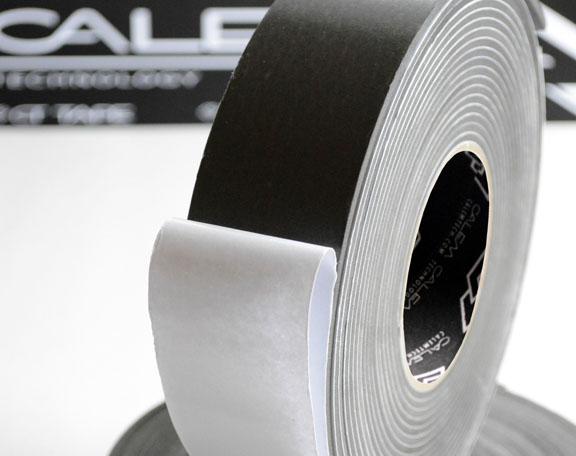

CT-PFM 0310 B - BLACK FOAM THERMAL INSULATION TAPE

FEATURES:
  • Prevent condensation and heat loss
  • Provides clean and smooth appearance of the duct
  • Soft and malleable, fit ducts and fittings
  • High quality acrylic adhesive
  • Mold, moisture, corrosion resistant
  • Compatible with closed cell pipe insulation (Armaflex, Thermaflex and similar)
APPLICATION:

POSSIBLE APPLICATIONS:

  • To to prevent condensation, freezing or reduce heat loss in tight spaces for HVAC, plumbing and other projects
  • To seal joints of compatible foam insulation in HVAC, solar, refrigeration, construction
Properties Metric English METHOD
Total Thickness 3 mm 120 mil PSTS-133 / ASTM D 3652
Peel Adhesion to steel 12 N/25mm 43.2 Oz/inch PSTC-101 / ASTM D 3330
Rolling Tack (11 mm ball) 10 cm 4 inch PSTC-6 / ASTM D 3121
Tensile strength 20 N/25 mm 4.5 Lb/inch PSTC-131 / ASTM D 3759
Elongation 80 % 80 % PSTC-131 / ASTM D 3759
Service Temperature -20 ∼ +65 °C -4 ∼ + 150 °F ----------
Core I.D. 76mm 3”
Roll width 48mm / 50mm (2"), 60mm / 63mm (2.5"), log roll 102 cm (40.2")
Roll length 7.5m (24ft), 9.1m (30ft), 10 m (32 ft), other length by special order
