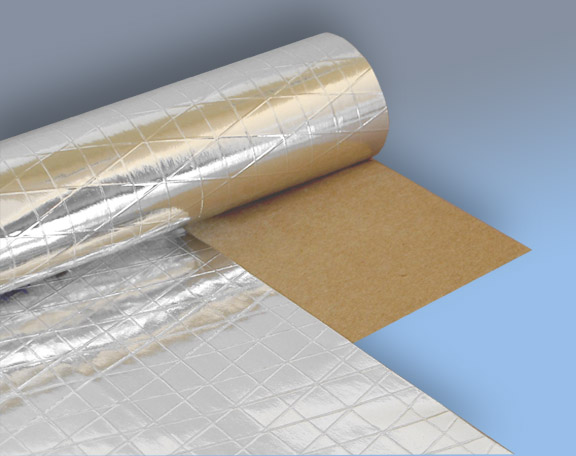

CT-FSK-0750A - INSULATION FOIL SCRIM KRAFT FACING AND VAPOR RETARDER
FEATURES:
- High heat reflection ability
- Good vapor barrier
- General use for duct wrap
APPLICATION:
- Used as a facing, vapour retarder and radiant barrier for different types of insulation.
| Facing Composition | Description | Values (English) | Values (Metric) |
|---|---|---|---|
| Foil | Aluminum | 0.28 mil | 7 micron |
| Reinforcing | Tri-directional Fiberglass | 2/inch (MD) 3/inch (XD) |
8/100 mm |
| Adhesive | Flame Retardant | ------ | ------ |
| Kraft | Natural | 30 lbs / 3000 ft2 | 50 g/ m2 |
| Physical Properties | Test Method | Values (English) | Values (Metric) |
|---|---|---|---|
| Basis Weight | Scale | 17.4 lbs / 1000 ft2 | 85 g/ m2 |
| Permeance (WVTR) | ASTM E96, Procedure A | 0.1 perm | 5.75 ng/N.s |
| Tensile Strength - MD | ASTM D828 | 26 lbs/inch | 4.6 kN/m |
| Tensile Strength - XD | ASTM D828 | 11.5 lbs/inch | 2.0 kN/m |
| Bursting Strength | ASTM D774 | 43.5 psi | 30 N/cm2 |
| Low Temperature Resistance | ASTM D1790 4 hrs @ -40 oF (-40 oC) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
| High Temperature Resistance | ASTM D1790 4 hrs @ +240 oF (+116 oC) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
| Dimensional Stability | ASTM D1204 @ 150 oF (65 oC) | Less than 0.5% | Less than 0.5% |
| Emissivity | ASTM E408 | 0.03 | 0.03 |
| Available Roll Width | --- | 39.4", 47", 49.21", 51.2", 53.14' | 1.0m, 1.2m, 1.25m, 1.3m, 1.35m |
