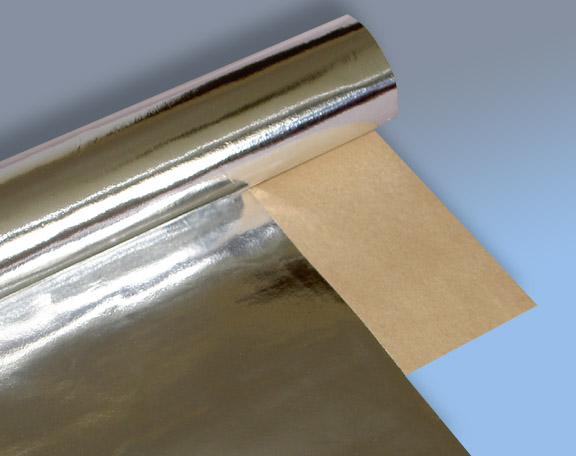

CT-FK-0760 - INSULATION FOIL KRAFT FACING AND VAPOR RETARDER
FEATURES:
- High heat reflection ability
- Good vapor barrier
- Medium duty applicaiton
APPLICATION:
- Used as a facing, vapour retarder and radiant barrier for different types of insulation.
| Facing Composition | Description | Values (English) | Values (Metric) |
|---|---|---|---|
| Foil | Aluminum | 0.28 mil | 7 micron |
| Adhesive | Polyethylene | ------ | ------ |
| Kraft | Natural | 36.6 lbs / 3000 ft2 | 60 g/ m2 |
| Physical Properties | Test Method | Values (English) | Values (Metric) |
|---|---|---|---|
| Basis Weight | Scale | 17.4 lbs / 1000 ft2 | 85 g/ m2 |
| Permeance (WVTR) | ASTM E96, Procedure A | 0.1 perm | 5.75 ng/N.s |
| Tensile Strength - MD | ASTM D828 | 23.9 lbs/inch | 4.2 kN/m |
| Tensile Strength - XD | ASTM D828 | 12.5 lbs/inch | 2.2 kN/m |
| Bursting Strength | ASTM D774 | 29 psi 20 N/cm2 | 20 N/cm2 |
| Low Temperature Resistance | ASTM D1790 4 hrs @ -40 oF (-40 oC) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
| High Temperature Resistance | ASTM D1790 4 hrs @ +240 oF (+116 oC) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
| Dimensional Stability | ASTM D1204 @ 150oF (65oC) | Less than 0.5% | Less than 0.5% |
| Emissivity | ASTM E408 | 0.03 | 0.03 |
| Available Roll Width | --- | 39.4", 47", 49.21", 51.2" | 1.0m, 1.2m, 1.25m, 1.3m |
