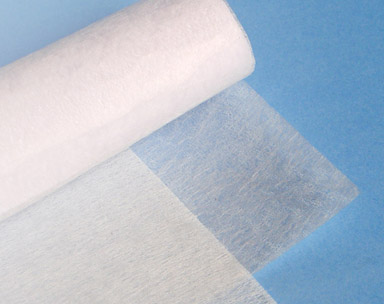

CT-FGT90.1 - WHITE FIBERGLASS TISSUE FACING AND REINFORCEMENT MEMBRANE
FEATURES:
- Withstands corrosion, non bio-degradable
- Provides reinforcement and dimensional stability
- Compatibility with adhesives, bitumen and asphalt, uniform coating
- Provides support to insulation material, superior strength
APPLICATION:
- Insulation facing for duct boards and wraps
- Acoustic lining of ducts
- Wrapping and coating for pipe protection
- Reinforcement membrane as roofing felt for waterproofing
| PROPERTIES | Values (Metric) | Values (English) |
|---|---|---|
| Area weight | 90 g/m2 | 0.3 oz/sq.ft |
| Nominal Thickness (mm) at 2 Lb/inch2 | 0.65 mm | 0.025 inch |
| Longitudinal Tensile Strength | 7.0 kN/m | 40 lbs/inch |
| Transverse | 4.8 kN/m | 27 lbs/inch |
| Fibre diameter | 13 micron | 0.5 mil |
| Glass Type | E-glass | E-glass |
| Binder Type | Urea Formaldehyde | Urea Formaldehyde |
| Binder content | 25% | 25% |
| Temperature Resistance | 200 oC | 392 oF |
| Core I.D. | 152mm | 6" |
| Roll width (custom roll width is available) | 1m | 39.4" |
| Roll length | 1500 m | 1640 yard |
